Description
PERFECT FOR LARGER ROOMS
GROUP, our video conferencing solution for rooms that seat 14–20 people, delivers high quality HD video and crystal clear audio, allowing any meeting place to be a video conferencing space. With advanced features like acoustic echo cancellation, noise reduction technology, and intuitive controls, it’s easier than ever to include everyone in the conversation.
PLUG-AND-PLAY SIMPLICITY
USB plug-and-play connectivity makes GROUP a breeze to deploy and use. Simply connect GROUP the conference room computer or your laptop through USB, and you’re good to go. Use GROUP with any video conferencing software, including those you already use. For great-sounding audio calls, pair your mobile device with Bluetooth® wireless technology to the GROUP speakerphone.
NATURAL-SOUNDING AUDIO
Everyone hears and can be heard with GROUP’s full-duplex speakerphone, which delivers sound that’s crisp, clear, and highly intelligible. Acoustic echo cancellation and noise reduction technology make conversations natural-sounding while reducing reverberation and ambient no
DIMENSIONS
Camera
- Height: 130 mm
- Width: 170 mm
- Depth: 138 mm
- Vekt: 585 g
SPEAKERPHONE
- Height: 240 mm
- Width: 65 mm
- Depth: 240 mm
- Vekt: : 1223 g

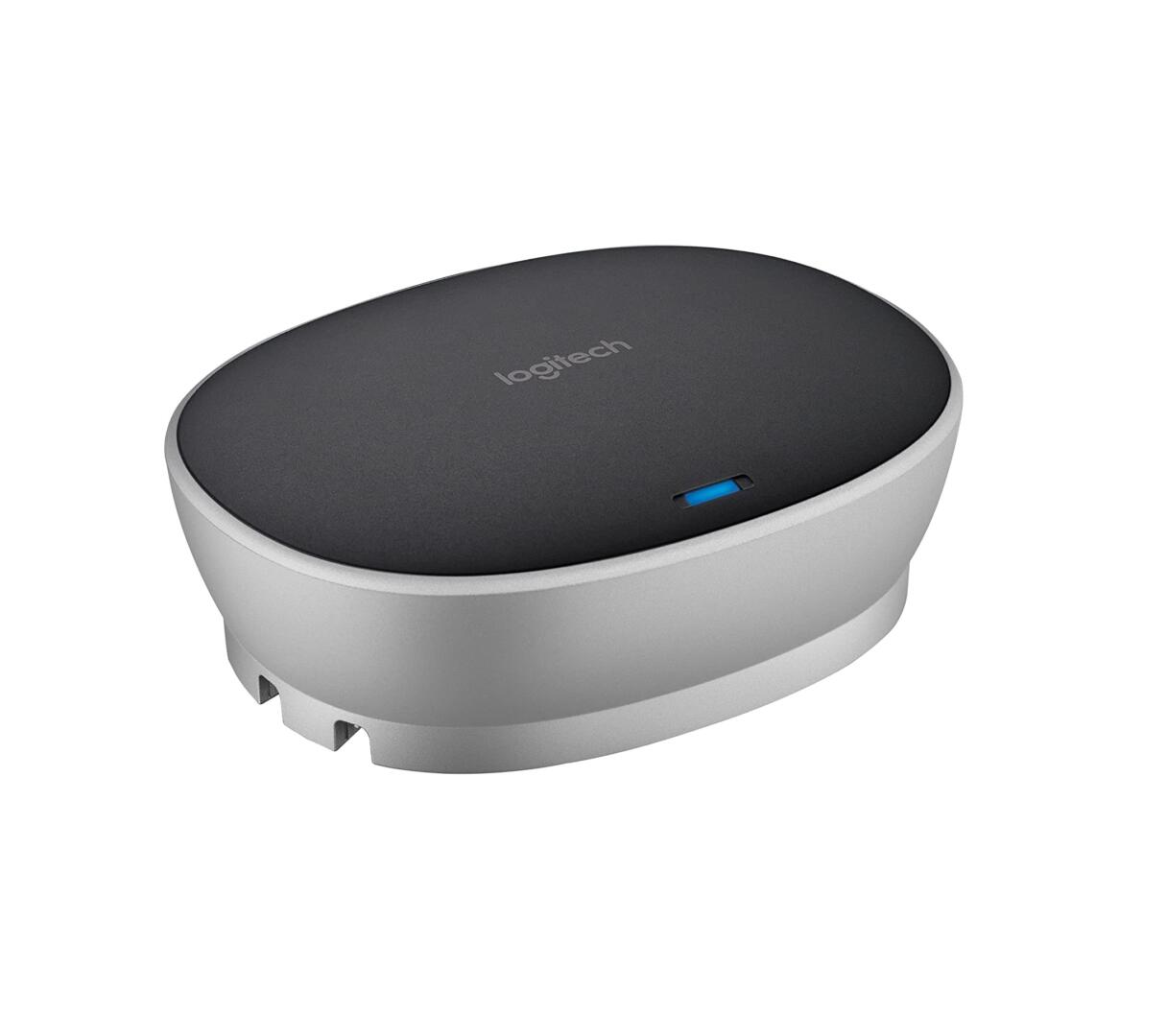

Hub
- Height: 94 mm
- Width: 34 mm
- Depth: 74 mm
- Vekt: 83 g
Remote
- Height: 50 mm
- Width: 120 mm
- Depth: 12 mm
- Vekt: 51 g
Wall/Table Mount
- Height: 210 mm
- Width: 120 mm
- Depth: 99 mm
- Vekt: 255 g
Expansion Mics (Optional)
- Height: 83 mm
- Width: 83 mm
- Depth: 21 mm
- Vekt: 230 g
SYSTEM REQUIREMENTS
Windows 7,8.1 or 10macOS 10.10 or laterTECHNICAL SPECIFICATIONS

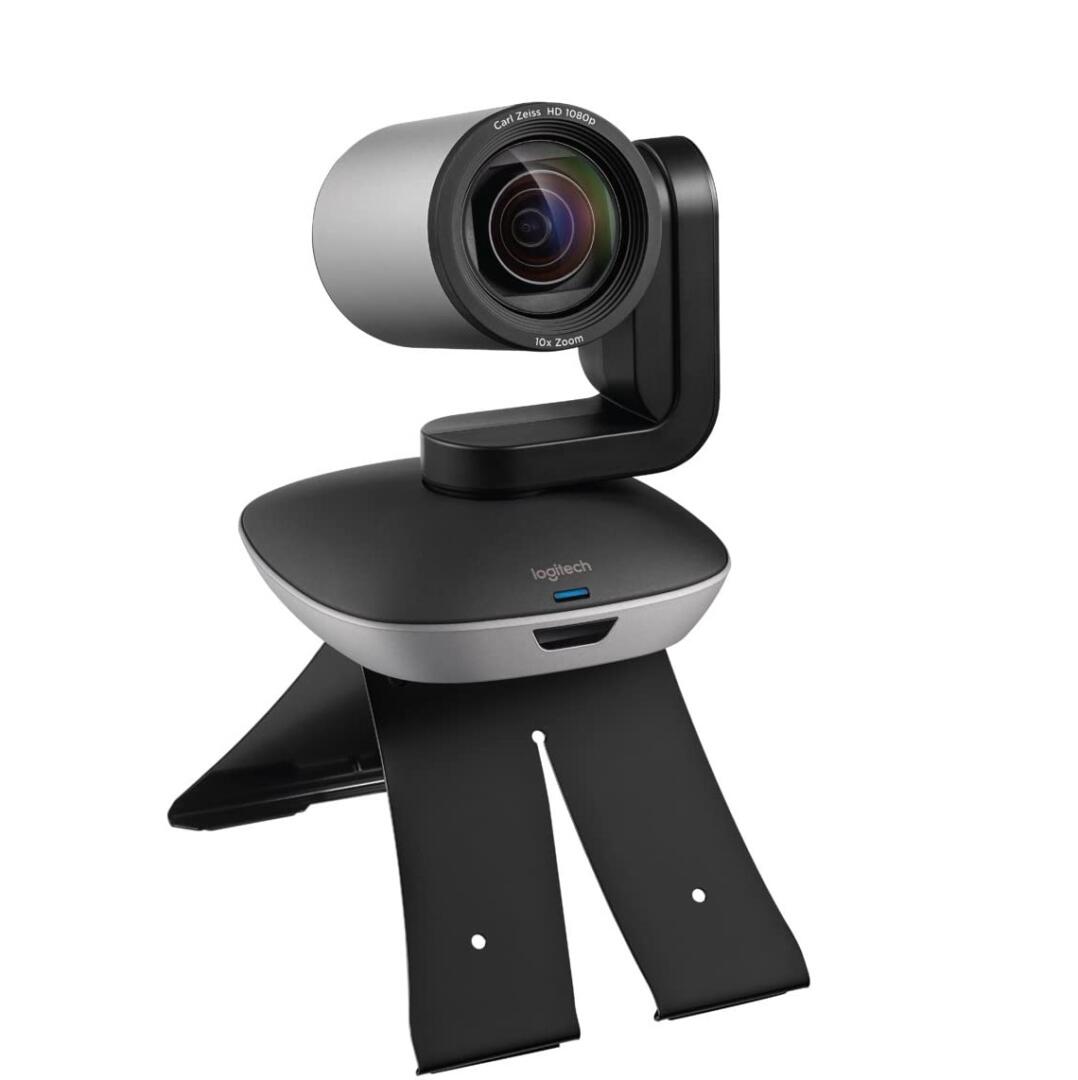

Camera
- Smooth motorized pan, tilt and zoom controlled from remote or console
- Pan +/- 90°
- Tilt +35° / -45
- 10x lossless HD zoom
- Field of View
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2°
- Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus
- 5 camera presets
- Far-end control (PTZ) of ConferenceCam product (with supported services)
- Kensington security slot
- Video mute/unmute LED indicator
- Standard tripod thread
Remote Control
- Camera, speakerphone, and call control
- 5 camera presets
- Docks on speakerphone
- IR 8.5 m range
- CR2032 battery (included)

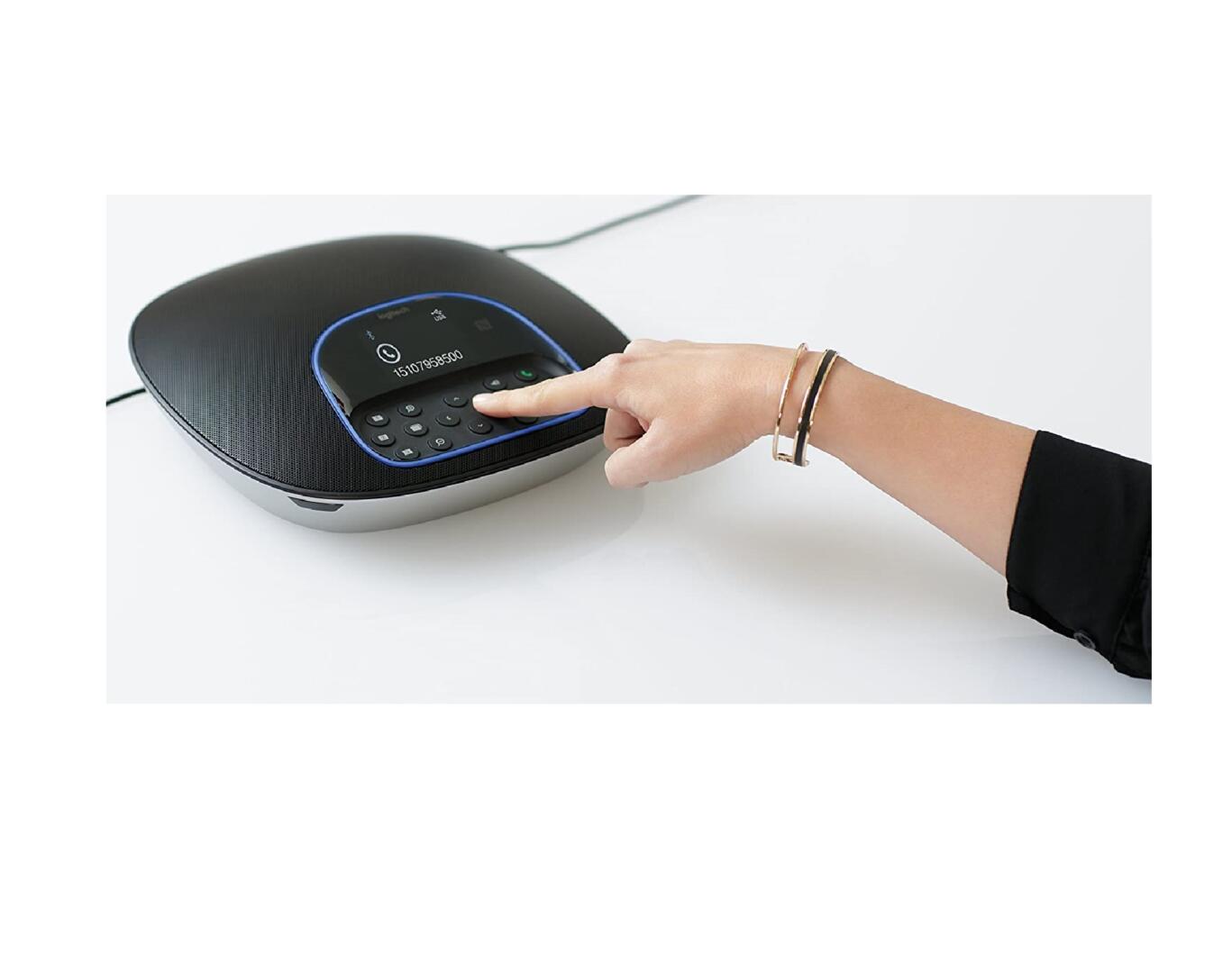

SPEAKERPHONE
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Pairs with mobile devices via Bluetooth and NFC
- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth
- Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
- 5 camera presets for pan, tilt, and zoom settings
- Kensington security slot
Microphones
- Pickup Range: 6 m
- Pickup range with expansion mics: 8.5 m
- Four omnidirectional, beamforming microphones
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28 dB +/-3dB
- Distortion: <5% from 200Hz
HUB / CABLES / POWER
- Central Hub connects and powers all components
- Under-table mounting adhesive included
- One cable to camera: 5 m
- One cable to speakerphone: 5 m
- Extended cables available: 10 and 15 m
- One USB cable for connection to PC/Mac: 2 m
- AC Power adapter with regional plugs
- Power cable: 3 m
MOUNT
- Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for Teams
- Zoom Certified
- Fuze Certified
- Microsoft Cortana®
- Cisco Jabber®
- Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

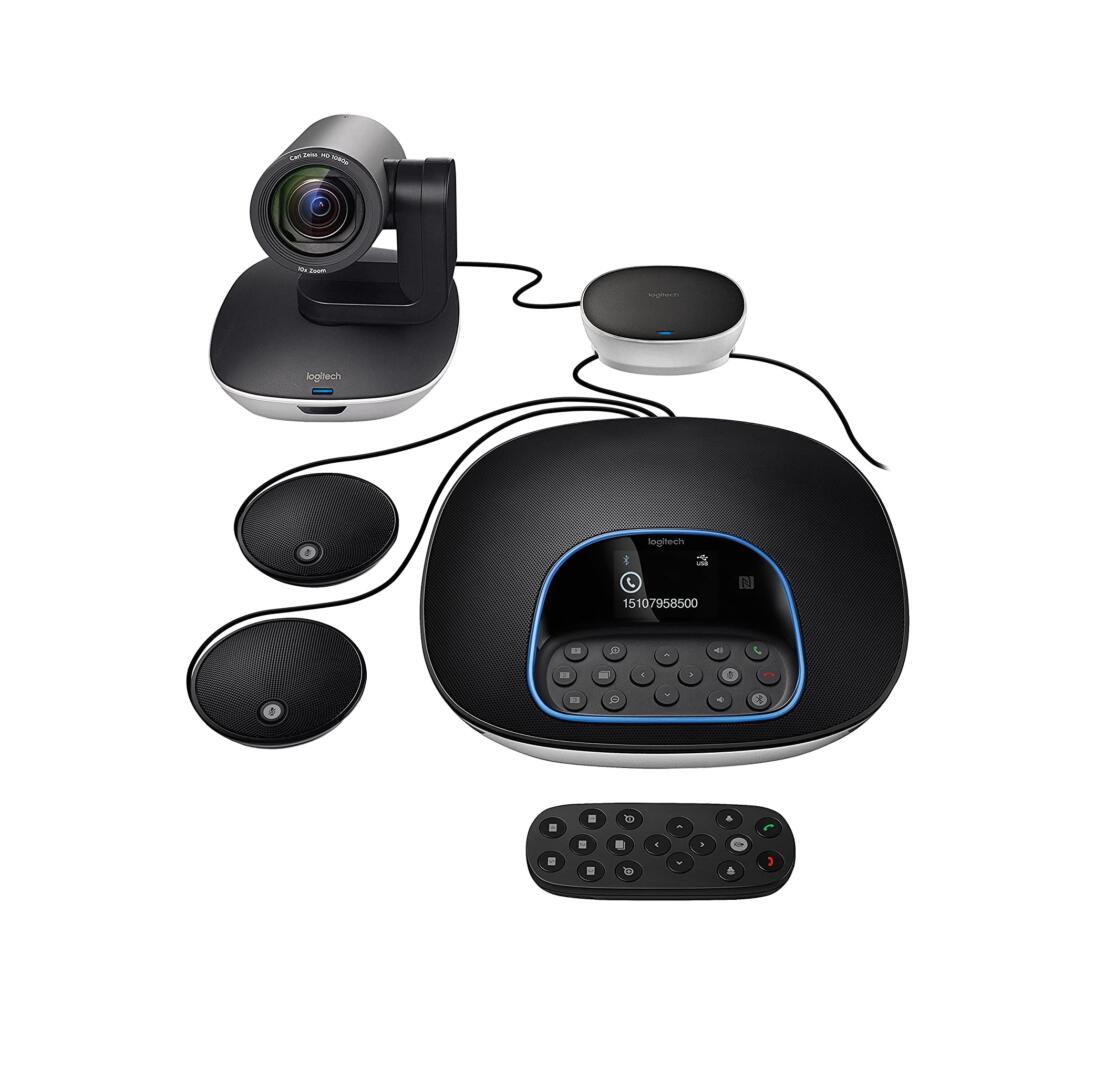

PACKAGE CONTENTS
- Camera
- Speakerphone
- Remote control
- Two 5m cables for connection between speakerphone and hub and camera and hub
- One 2m meter cable between hub and PC
- Velcro for cable management
- Velcro for hub to table securing
- Powered hub
- Power adapter with regional plugs and 3m
- Mount
- Documentation
